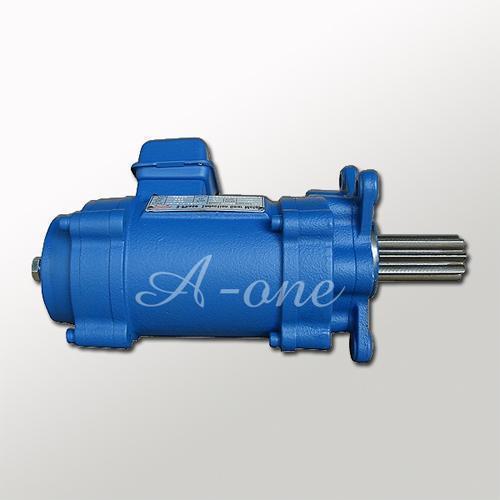

Gear motor for trolley LK-S-0.25A
Product ID: LK-S-0.25A SERIES(CHEC)
The gear boxes are designed which makes it operate smoothly and quietly. It is characteristic of high strength and low backlash.
The motor are high starting torque and high output load, The brake of motor can be easily adjusted brake torque.
Specification:
Power: 0.25kWx 4P ,0.18kWx6P
Power supply: 200V~600V/(50/60Hz)
Ratio: 5.6 ,7.1
With output pinion ( M3.0, M3.5, M4.0 )
Specifications:
|
Type |
Power |
Pole |
Ratio |
60Hz |
50Hz |
Accessory |
||
|
Output speed |
Output torque (Nm) |
Output speed |
Output torque |
|||||
|
LK-S-0.25A-L |
0.25 |
4 |
7.1 |
239 |
10 |
199 |
12 |
*With flange plate |
|
0.18 |
6 |
159 |
10 |
133 |
12 |
|||
|
LK-S-0.25A-H |
0.25 |
4 |
5.6 |
304 |
8 |
253 |
9 |
|
|
0.18 |
6 |
203 |
8 |
169 |
9 |
|||
Solid pinion
|
Module |
Teeth |
Shifted factor |
|
M3.0 |
(9T) (10T) (11T) |
0.25 |
|
M3.5 |
8T 9T (10T) |
0.25 |
|
M4.0 |
8T |
0.25 |
*Remark: ( ) There is 85mm in length of solid pinion, besides 70mm.
Certificate:
- CE Approved
- China CCC certificate(3C)
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung port, Keelung port
