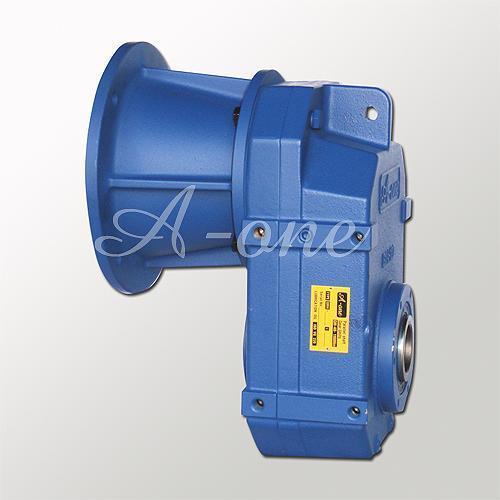

Parallel shaft gear units--GM3.5
Product ID: GM3.5-SERIES(A-one)
Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.
The A-one gear units apply modular design. Ratios are designed and selected to correspond with the normal usage of customers .Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.
Specification:
Max. output torque: 900Nm
Ratio: 4-224
Adapter motor power: 0.37kW-3.7kW
Output speed: 750rpm-4rpm
Output hollow shaft: key way 35mm or 40mm ; spline 35mm
Options：
Output flange
Output shaft
Specifications:
|
Gear unit Type |
I |
Output speed n2 |
Output |
Input torque of input unit T1(Nm) |
|||||||
|
(60Hz)rpm |
(50Hz)rpm |
||||||||||
|
Nm |
2.5 |
5 |
10 |
15 |
25 |
45 |
50 |
||||
|
GM3.5-4 |
4.42 |
407.24 |
339.37 |
360 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-5 |
4.67 |
385.44 |
321.20 |
370 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-6 |
6.07 |
296.54 |
247.12 |
390 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-7 |
7.15 |
251.75 |
209.79 |
400 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-9 |
8.97 |
200.67 |
167.22 |
400 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-11 |
11.16 |
161.29 |
134.41 |
720 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-14 |
13.16 |
136.78 |
113.98 |
780 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
GM3.5-18 |
18.67 |
96.41 |
80.34 |
900 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM3.5-22 |
22.01 |
81.78 |
68.15 |
900 |
○ |
○ |
○ |
○ |
○ |
- |
- |
|
GM3.5-28 |
27.62 |
65.17 |
54.31 |
900 |
○ |
○ |
○ |
○ |
○ |
- |
- |
|
GM3.5-36 |
34.88 |
51.61 |
43.00 |
900 |
○ |
○ |
○ |
○ |
- |
- |
- |
|
GM3.5-45 |
43.72 |
41.17 |
34.31 |
900 |
○ |
○ |
○ |
○ |
- |
- |
- |
|
GM3.5-56 |
53.85 |
33.43 |
27.86 |
900 |
○ |
○ |
○ |
○ |
- |
- |
- |
|
GM3.5-71 |
73.12 |
24.62 |
20.51 |
900 |
○ |
○ |
○ |
- |
- |
- |
- |
|
GM3.5-90 |
90.06 |
19.99 |
16.66 |
900 |
○ |
○ |
- |
- |
- |
- |
- |
|
GM3.5-112 |
112.62 |
15.98 |
13.32 |
900 |
○ |
○ |
- |
- |
- |
- |
- |
|
GM3.5-140 |
139.66 |
12.89 |
10.74 |
900 |
○ |
○ |
- |
- |
- |
- |
- |
|
GM3.5-180 |
172.01 |
10.46 |
8.72 |
900 |
○ |
- |
- |
- |
- |
- |
- |
|
GM3.5-224 |
215.10 |
8.37 |
6.97 |
900 |
○ |
- |
- |
- |
- |
- |
- |
Certificate:
- CE Approved
- China CCC certificate(3C)
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung port, Keelung port
